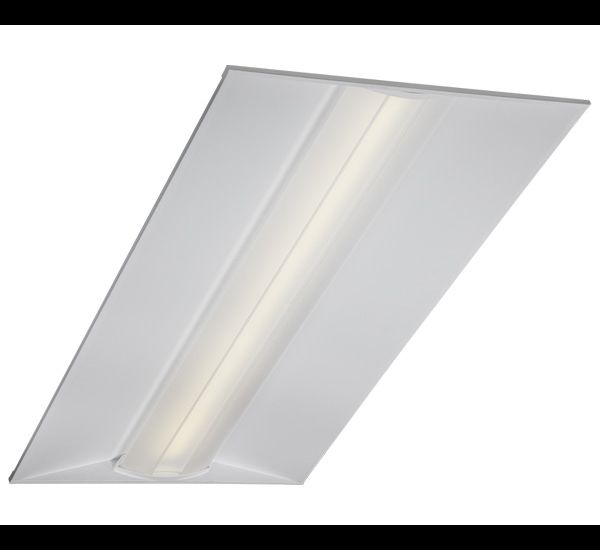

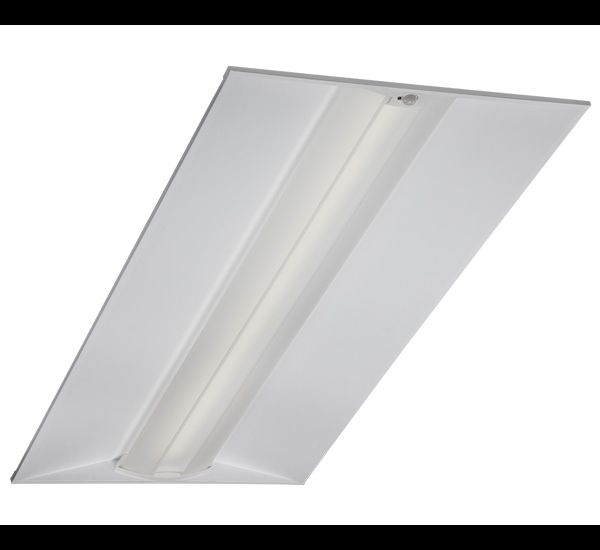

FLEX Series
With 3 lenses, multiple lumen options and a selection of customized inner optics, the FLEX Series troffer offers remarkable design freedom. Five inner optic choices creative distinctive spaces with just one fixture to specify. With Tunable White and higher lumen packages for over 20′, the FLEX Series is open to a variety of applications.
Product Details
Wattage: 18 – 82 Watts
Replaces: Linear fluorescent
Efficacy: Up to 159 LPW
Limited Warranty: 10-year
CCT Options: 3000K, 3500K, 4000K, 5000K
Tunable White (SmartCast, Lutron Athena)
Three lens and five inner optic options
Mounting heights over 20′
Chicago Plenum, Emergency Backup, and Generator Transfer Device options
SmartCast Wireless, DALI, and Lutron Athena control options
Assembled in USA by Cree Lighting of US and imported parts
DLC Standard and DLC Premium
- Ordering Matrix
- Certifications
| Family | Size | Lumen Package | CRI/CCT | Lens | Controls | Voltage | Factory-Installed Options |
|---|---|---|---|---|---|---|---|
| FLX | 14 1x4 | 30L3,000 Lumens 40L4,000 Lumens 50L5,000 Lumens 60L6,000 Lumens | 830 80 CRI, 3000K 835 80 CRI, 3500K 840 80 CRI, 4000K 850 80 CRI, 5000K 930 90 CRI, 3000K 935 90 CRI, 3500K 940 90 CRI, 4000K 950 90 CRI, 5000K 9ACK 90 CRI, Adjustable Color 3000K-6500K in 100K increments - Available only with 30L-60L lumen packages (SC1 or AWNR/AWNS controls) - Available only with SC1 or AWNR/AWNS controls | CRV ZR Curve ARC FLX Arc SQ Square | 10V10 0-10V 10% Dimming - Available only with 30L - 60L lumen packages 10V1 0-10V 1% dimming SC1 SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors - For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only) VDO Lutron Vive Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing VRF Lutron Vive Wireless Integral Fixture Control (RF only) with 1% Dimming DALI DALI dimming to 1% AWNR Lutron Athena Integral Fixture Control (RF only) with 1% Dimming - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only) - Utilizes a DALI2 driver AWNS Lutron Athena Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only) - Utilizes a DALI2 driver | UNVUniversal 120-277V 34 347V (not available with 10V10 controls) | 6W5 Power Whip - 6' 5 Wire - Available with UNV voltage only - Not available with CP, EB or GT options 6W6 Power Whip - 6' 6 Wire for use with luminaires w/EB option - Available with UNV voltage only - Not available with CP or GT options CP Chicago Plenum - Available with UNV voltage only - Available with all controls except AWNR - Not available with power whip, EB, or GT options EB Emergency Backup - Available with UNV voltage only - Provides 10W and 90 minutes of emergency operation - Not avaialble with 6W5, CP, or GT options GT Generator Transfer Device - Available with UNV voltage only - Not available with power whip, CP, or EB options |
| FLX | 222x2 | 26L 2,600 Lumens 30L3,000 Lumens 40L4,000 Lumens 50L5,000 Lumens | 830 80 CRI, 3000K 835 80 CRI, 3500K 840 80 CRI, 4000K 850 80 CRI, 5000K 930 90 CRI, 3000K 935 90 CRI, 3500K 940 90 CRI, 4000K 950 90 CRI, 5000K 9ACK 90 CRI, Adjustable Color 3000K-6500K in 100K increments - Available only with 30L-60L lumen packages (SC1 or AWNR/AWNS controls) - Available only with SC1 or AWNR/AWNS controls | CRV ZR Curve ARC FLX Arc SQ Square | 10V10 0-10V 10% Dimming - Available only with 30L - 60L lumen packages 10V1 0-10V 1% dimming SC1 SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors - For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only) VDO Lutron Vive Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing VRF Lutron Vive Wireless Integral Fixture Control (RF only) with 1% Dimming DALI DALI dimming to 1% AWNR Lutron Athena Integral Fixture Control (RF only) with 1% Dimming - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only) - Utilizes a DALI2 driver AWNS Lutron Athena Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing - Tunable white requires 9ACK CRI/CCT (26L-50L lumen packages only) - Utilizes a DALI2 driver | UNVUniversal 120-277V 34 347V (not available with 10V10 controls) | 6W5 Power Whip - 6' 5 Wire - Available with UNV voltage only - Not available with CP, EB or GT options 6W6 Power Whip - 6' 6 Wire for use with luminaires w/EB option - Available with UNV voltage only - Not available with CP or GT options CP Chicago Plenum - Available with UNV voltage only - Available with all controls except AWNR - Not available with power whip, EB, or GT options EB Emergency Backup - Available with UNV voltage only - Provides 10W and 90 minutes of emergency operation - Not avaialble with 6W5, CP, or GT options GT Generator Transfer Device - Available with UNV voltage only - Not available with power whip, CP, or EB options |
| FLX | 242x4 | 30L3,000 Lumens 40L4,000 Lumens 50L5,000 Lumens 60L6,000 Lumens 70L7,000 Lumens 80L8,000 Lumens 100L10,000 Lumens | 830 80 CRI, 3000K 835 80 CRI, 3500K 840 80 CRI, 4000K 850 80 CRI, 5000K 930 90 CRI, 3000K 935 90 CRI, 3500K 940 90 CRI, 4000K 950 90 CRI, 5000K 9ACK 90 CRI, Adjustable Color 3000K-6500K in 100K increments - Available only with 30L-60L lumen packages (SC1 or AWNR/AWNS controls) - Available only with SC1 or AWNR/AWNS controls | CRV ZR Curve ARC FLX Arc SQ Square | 10V10 0-10V 10% Dimming - Available only with 30L - 60L lumen packages 10V1 0-10V 1% dimming SC1 SmartCast Wireless Technology with 1% Dimming, Integral Motion and Ambient Sensors - For adjustable CCT functionality, luminaire must be ordered with 9ACK CRI/CCT (30L-60L lumen packages only) VDO Lutron Vive Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing VRF Lutron Vive Wireless Integral Fixture Control (RF only) with 1% Dimming DALI DALI dimming to 1% AWNR Lutron Athena Integral Fixture Control (RF only) with 1% Dimming - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only) - Utilizes a DALI2 driver AWNS Lutron Athena Wireless Integral Fixture Control with 1% Dimming, Occupancy and Daylight Sensing - Tunable white requires 9ACK CRI/CCT (30L-60L lumen packages only) - Utilizes a DALI2 driver | UNVUniversal 120-277V 34 347V (not available with 10V10 controls) | 6W5 Power Whip - 6' 5 Wire - Available with UNV voltage only - Not available with CP, EB or GT options 6W6 Power Whip - 6' 6 Wire for use with luminaires w/EB option - Available with UNV voltage only - Not available with CP or GT options CP Chicago Plenum - Available with UNV voltage only - Available with all controls except AWNR - Not available with power whip, EB, or GT options EB Emergency Backup - Available with UNV voltage only - Provides 10W and 90 minutes of emergency operation - Not avaialble with 6W5, CP, or GT options GT Generator Transfer Device - Available with UNV voltage only - Not available with power whip, CP, or EB options |
Downloads
- Spec Sheets
- IES & Design Files
- Installation Guides
- Technical Documents
- Warranty
- Literature
Accessories & Options
| Product Image | Order # | Description | Spec Sheet | Install Guide |
|---|---|---|---|---|
 | CCT-CWC-1 | SmartCast® Wireless Configuration Tool | Download File | Download File |
 | CSC-ZC-10V-CWC | SmartCast 10V Zone Controller | Download File | Download File |
 | SMK-FLX14 | 1×4 Surface Mount Kit | Download File | Download File |
 | SMK-FLX22 | 2×2 Surface Mount Kit | Download File | Download File |
 | SMK-FLX24 | 2×4 Surface Mount Kit | Download File | Download File |
 | DGA14-WHT | (Single-pack) For use when mounting in drywall ceilings. | Download File | Download File |
| DGA14-WHT-10PK | (10-pack) For use when mounting in drywall ceilings | Download File | Download File |
 | DGA22-WHT | (Single-pack) For use when mounting in drywall ceilings. | Download File | Download File |
| DGA22-WHT-10PK | (10-pack) For use when mounting in drywall ceilings. | Download File | Download File |
 | DGA24-WHT | (Single-pack) For use when mounting in drywall ceilings. | Download File | Download File |
| DGA24-WHT-10PK | (10-pack) For use when mounting in drywall ceilings. | Download File | Download File |
 | CSC-CWD-UNV-WH | SmartCast® Technology Wireless Dimmer (no neutral required) | View All Downloads | |
| CSC-CWD-UNVN-WH | SmartCast® Technology Wireless Dimmer (neutral wire required) | View All Downloads | |
 | CSC-CWS-UNV-WH | SmartCast® Technology Wireless Switch (no neutral required) | View All Downloads | |
| CSC-CWS-UNVN-WH | SmartCast® Technology Wireless Switch (neutral wire required) | View All Downloads | |
 | CFP-1-WH | SmartCast® Wireless Face Plate – 1-Gang | Download File | Download File |
 | CFP-2-WH | SmartCast® Wireless Face Plate – 2-Gang | Download File | Download File |
 | CSC-SC-A-5B-UNVN-WH | SmartCast® Wireless Scene Controller, 5-Button, No Text | Download File | Download File |
 | CSC-SC-A-5C-UNVN-WH | SmartCast® Wireless Scene Controller – CCT Text | Download File | Download File |
 | CSC-SC-A-5S-UNVN-WH | SmartCast® Wireless Scene Controller, 5-Button, Scene Text | Download File | Download File |
 | CSC-SC-A-5X-UNVN-WH | SmartCast® Wireless Scene Controller – Custom Text | Download File | View All Downloads |
 | CPLC-JB-CWC | SmartCast® Wireless Plug Load Controller | Download File | Download File |
 | FLX-WVD-4 | 4′ Wavy Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-WVD-2 | 2′ Wavy Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-PFD-4 | 4′ Perforated Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-PFD-2 | 2′ Perforated Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-STD-4 | 4′ Diffuse Inner Optic Diffuser, 10-Pack | ||
| FLX-STD-2 | 2′ Diffuse Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-BMD-4 | 4′ Brushed Metal Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-BMD-2 | 2′ Brushed Metal Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-STRD-4 | 4′ Striped Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-STRD-2 | 2′ Striped Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SMPL-4 | 4′ Sample Inner Optic Diffuser, 5-Pack | Download File | |
| FLX-SMPL-2 | 2′ Sample Inner Optic Diffuser, 5-Pack | Download File | |
| FLX-SCLV-WVD-4 | 4′ Wavy Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-WVD-2 | 2′ Wavy Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-PFD-4 | 4′ Perforated Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-PFD-2 | 2′ Perforated Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-STD-4 | 4′ Diffuse Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-STD-2 | 2′ Diffuse Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-BMD-4 | 4′ Brushed Metal Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-BMD-2 | 2′ Brushed Metal Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-STRD-4 | 4′ Striped Inner Optic Diffuser, 10-Pack | Download File | |
| FLX-SCLV-STRD-2 | 2′ Striped Inner Optic Diffuser, 10-Pack | Download File | |
 | FLX14/24-ARC-RLK | 4′ Replacement Lens Kit, Arc Lens | Download File | |
| FLX14/24-ARC-SCLV-RLK | 4′ Replacement Lens Kit, Arc Lens | Download File | |
 | FLX14/24-CRV-RLK | 4′ Replacement Lens Kit, Curve Lens | Download File | |
| FLX14/24-CRV-SCLV-RLK | 4′ Replacement Lens Kit, Curve Lens | Download File | |
 | FLX14/24-SQ-RLK | 4′ Replacement Lens Kit, Square Lens | Download File | |
| FLX14/24-SQ-SCLV-RLK | 4′ Replacement Lens Kit, Square Lens | Download File | |
| FLX22-ARC-RLK | 2′ Replacement Lens Kit, Arc Lens | Download File | |
| FLX22-ARC-SCLV-RLK | 2′ Replacement Lens Kit, Arc Lens | Download File | |
| FLX22-CRV-RLK | 2′ Replacement Lens Kit, Curve Lens | Download File | |
| FLX22-CRV-SCLV-RLK | 2′ Replacement Lens Kit, Curve Lens | Download File | |
| FLX22-SQ-RLK | 2′ Replacement Lens Kit, Square Lens | Download File | |
| FLX22-SQ-SCLV-RLK | 2′ Replacement Lens Kit, Square Lens | Download File | |
 | CSC-CCD-UNV-WH | SmartCast® Technology Adjustable CCT Wireless Dimmer (no neutral wire required) | Download File | Download File |
| CSC-CCD-UNVN-WH | SmartCast® Technology Adjustable CCT Wireless Dimmer (neutral wire required) | Download File | Download File |
| FLX-EBKIT-IO | EB Replacement Kit | Download File |
